RESINTUFF Gully Port Covers and Sleeper
Frames

For use in sewer and drainage manholes or pits. RESINTUFF® step irons are manufactured from high strength galvanized steel bar and are fully encapsulated in tough yellow polypropylene for visibility underground. There are no sharp edges or corners on these step irons and the 25mm sides stop feet slipping off.

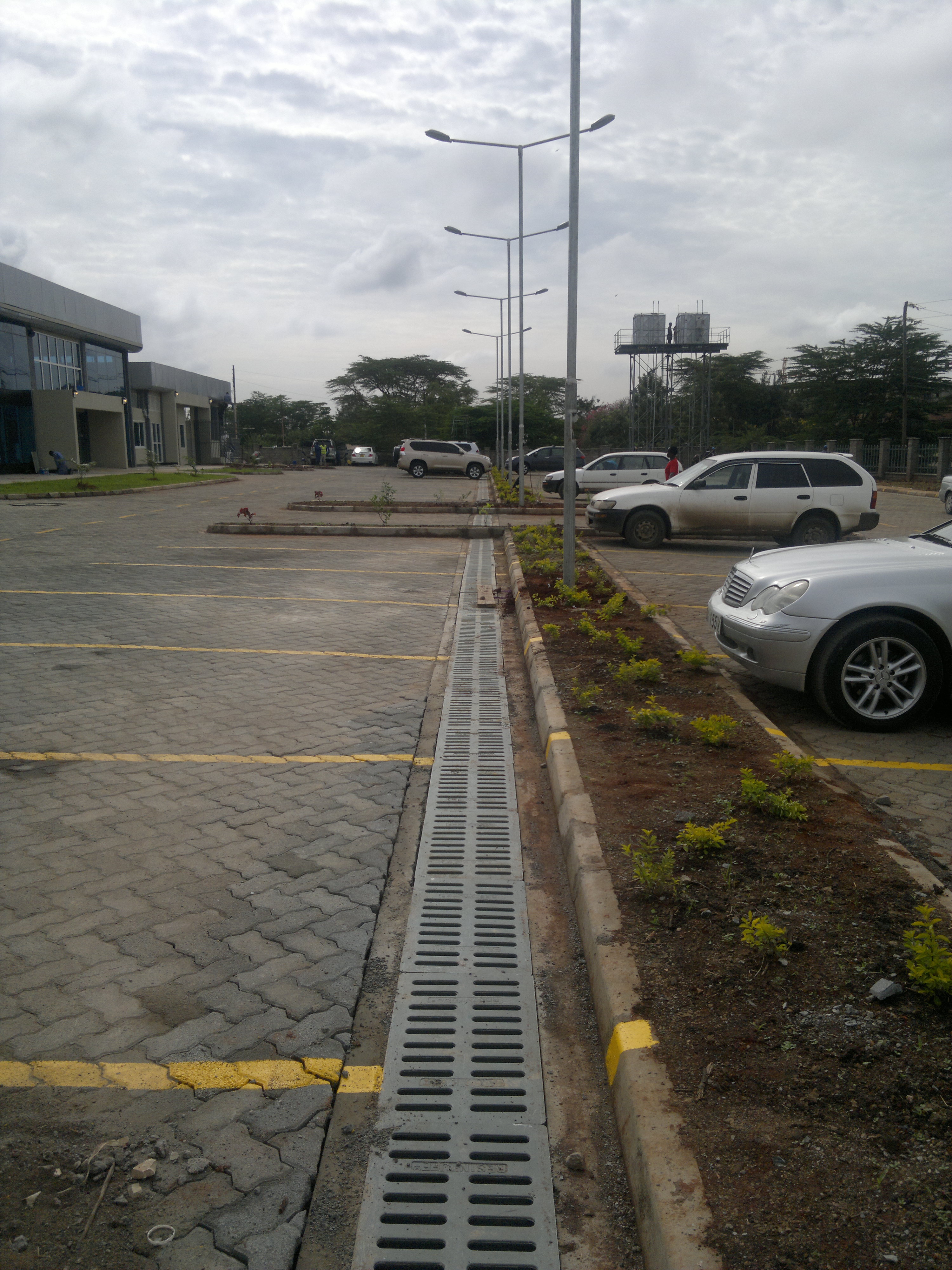

Professional construction work

RESINTUFF Gully Port Covers with Sleeper Frame

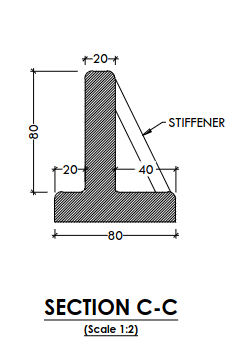

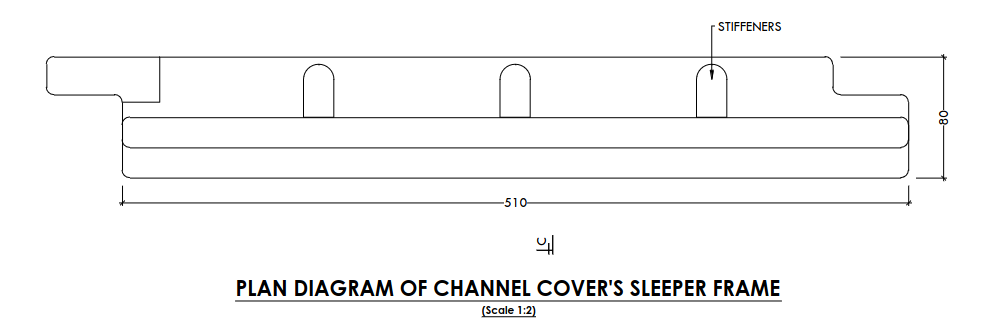

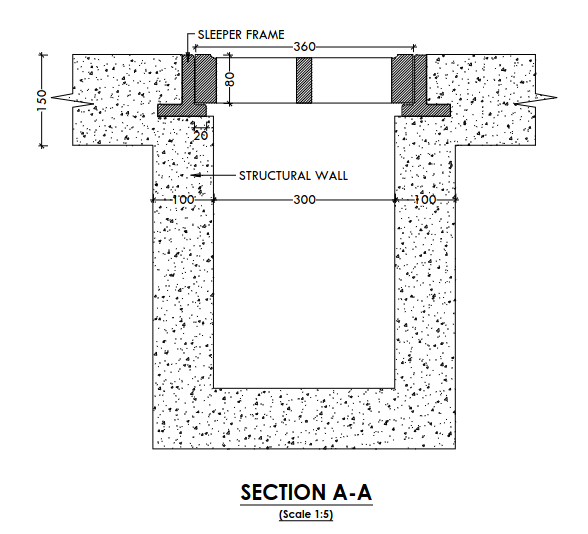

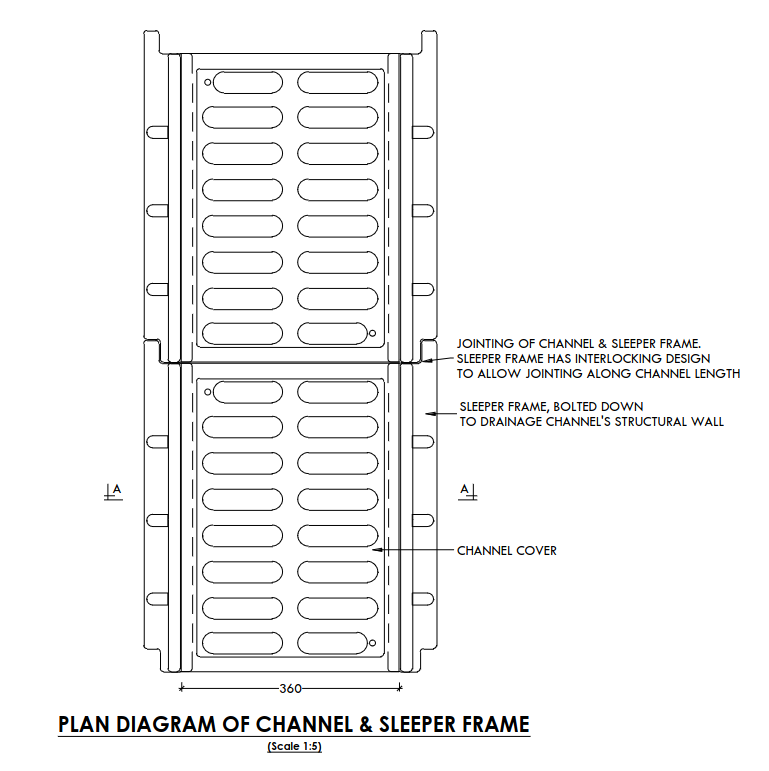

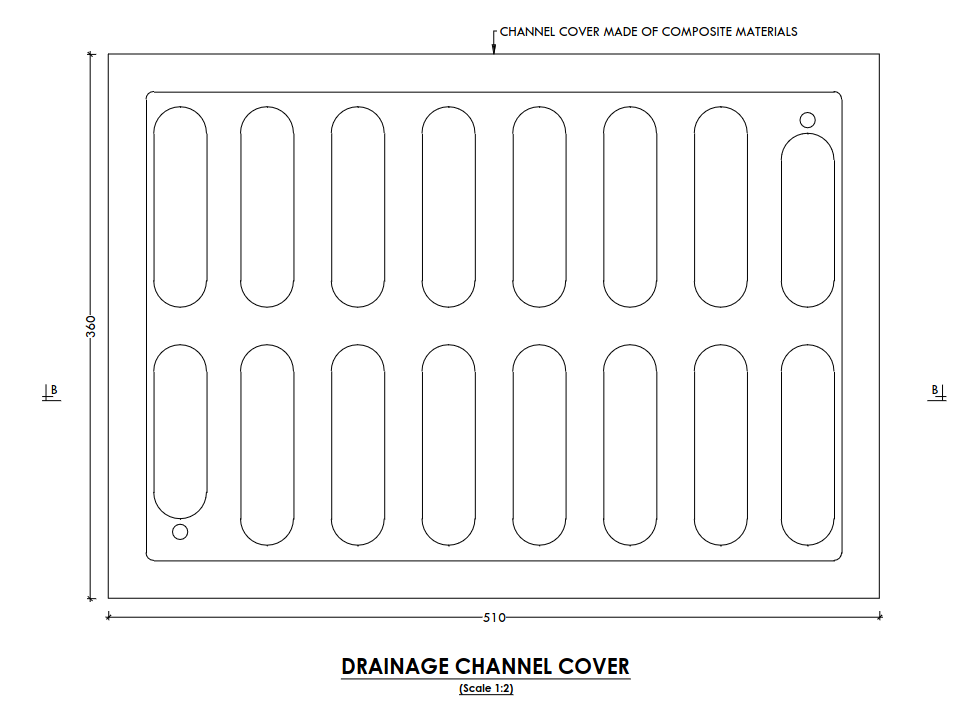

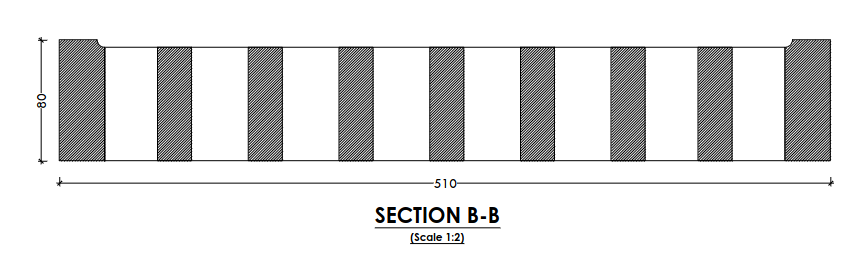

RESINTUFF gully port covers can either be purchased standalone or with a channel and sleeper frame. The frame acts as a resting bed for the gully grating, preventing interaction with the underlying installation to reduce wear...

gully grating with frame

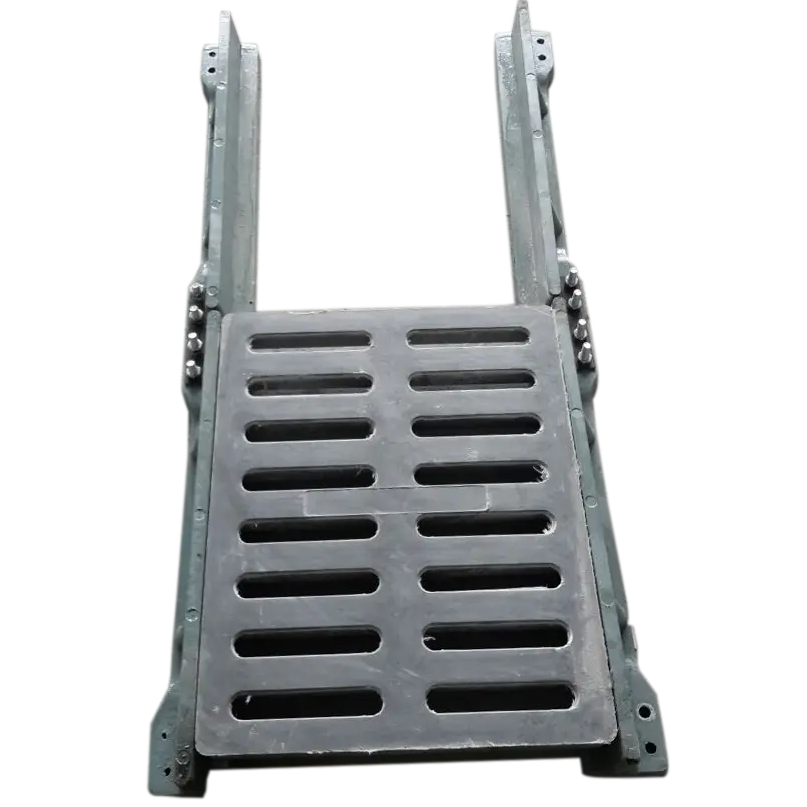

Gully grating with frame

gully grating with frame

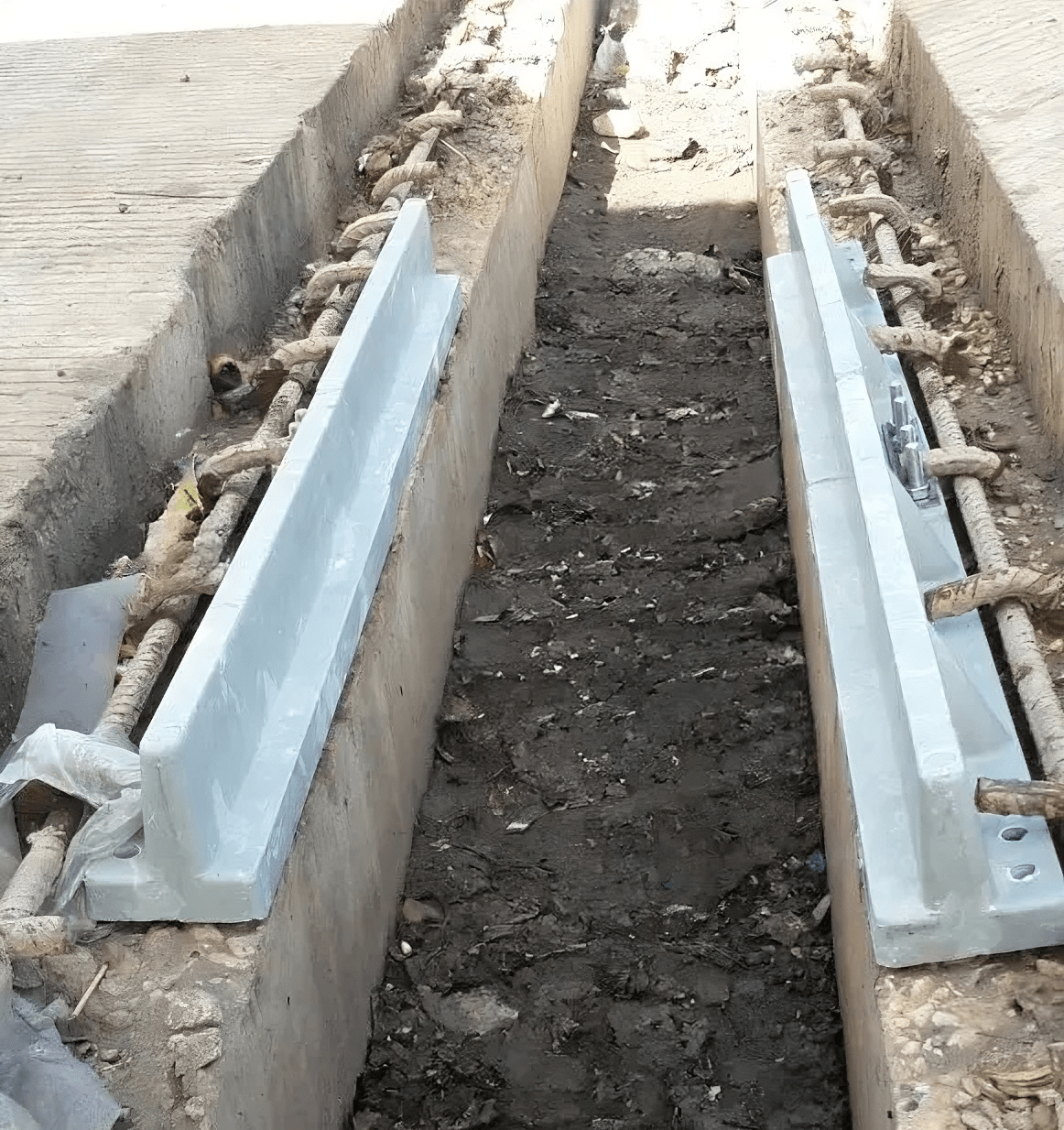

Gully grating with frame

RESINTUFF Gully Port Covers Specifications

RESINTUFF Manhole Covers are manufactured with specially designed hydraulic presses. They are made with composite materials of Thermosett resin, and reinforced with. This results in a composite material which is very high in compressive, tensile and flexural strength.

Product Code Load Capacity
(Tons)
Wt / Sets
(Kgs)
Cover Details Frame Details Availability
A B C D E F
MHCF-38 2.5 220 900 x 900 600 x 450 50 1130 x 1130 100 50
MHCF-39 2.5 170 900 x 600 600 x 600 50 1130 x 830 100 50
MHCF-40 2.5 100 650 dia 600 dia 37 1080 x 610 80 40
